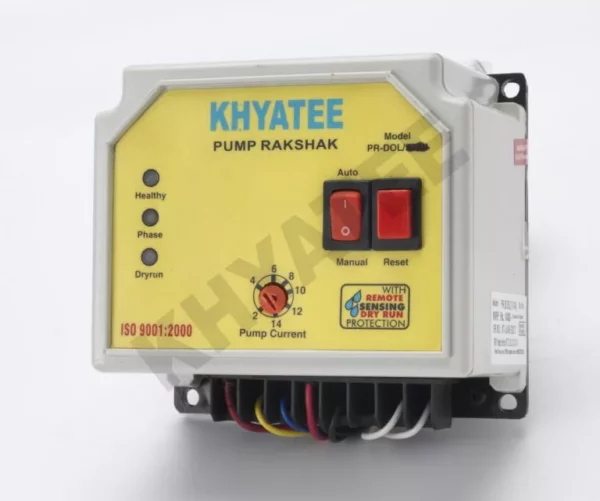

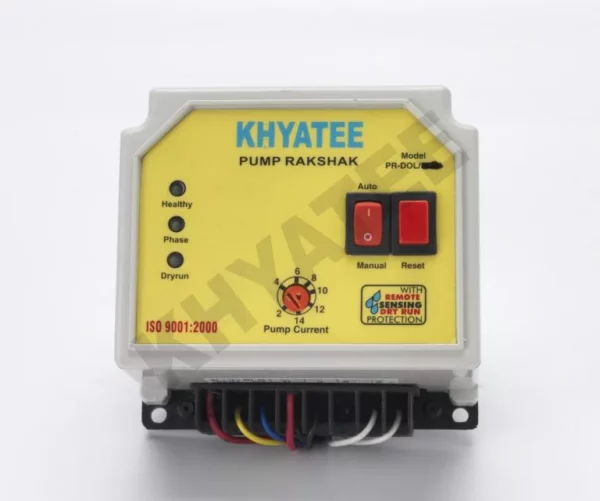

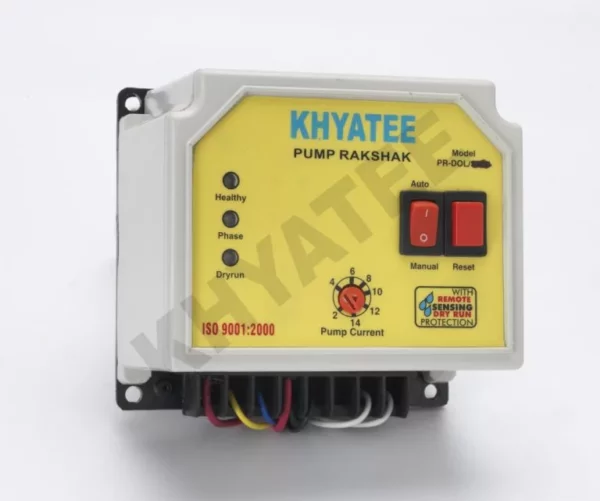

Specifications
1. System Settings
| • Input Voltage (AC) | : 200 – 470 VAC, 50 Hz |
2. Protections / Setting Parameters
| • Pump Current Range | : 2 – 14 / 8 – 20 Amps. |
| Sr. No. | Parameter | Setting Range | Default setting | Trip Time Delay | LED |
|---|---|---|---|---|---|
| 1 | Phase Failure | NA | Fixed | 4 sec ± 2 sec | YES |
| 2 | Reverse Phase | NA | Fixed | 4 sec ± 2 sec | YES |
| 3 | Phase Unbalance | NA | Fixed | 4 sec ± 2 sec | YES |
| 4 | Dryrun | Fixed | 75 % | 4 sec ± 2 sec | YES |
3. Timers
| Sr. No. | Parameter | Setting Range | Default setting |
|---|---|---|---|
| 1 | Power on Timer | 3 sec – 300 sec | 60 sec ± 3 sec |
| 2 | Star Delta Timer | 3 sec – 60 sec | 60 sec ± 3 sec |
3. Reset
| • Resetting mode | : By Reset switch |
4. Output Relay Contact :
| • Relay Mechanical life | : 10 lac operations |
| • Dielectric Strength | : 2.2 KV , 50 Hz for 1 min |
5. Enclosure & Mounting
| • Enclosure Material | : Rust Proof, Shock Proof, ABS Enclosure |
| • Mounting | : Wall Mounting with screw |
| • Temperature | : 5 to 60°C |
| • Humidity | : Up to 90% RH |
6. Dimensions & Weight
| • L × W × D (mm) | :109 × 119 × 75 mm |
| • Power Consumption | : Less than 5 Watts |
| • Weights | : gms. |
